Batch Type Paddy Dryer Machine with 15.3kw Power and Automatic Control for Low Temperature Drying

Название бренда:	PAM
Номер модели:	ПМД-60
минимальный заказ:	1 КОМПЛЕКТ
цена:	USD 52500-58000 / set
Условия оплаты:	Л/К, Т/Т
Возможность поставки:	100 комплектов в месяц

Детальная информация

Описание продукта

Детальная информация

Место происхождения:

Китай

Сертификация:

ISO

тип:

Тип серии

Использование:

сушка зерна

Состояние:

Новый

Размер тела:

2850*2970*13700мм

Габаритные размеры:

5100*6321*14200мм

Власть:

15.3kw

Упаковывая детали:

Стандартные экспортные деревянные ящики

Выделить:

15.3kw Power Paddy Dryer Machine

Automatic Control Grain Dryer

Low Temperature Drying Batch Type Dryer

Описание продукта

1. Product Description

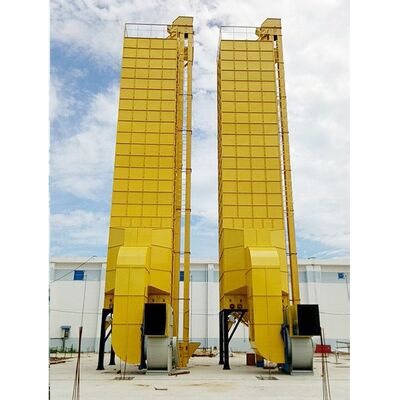

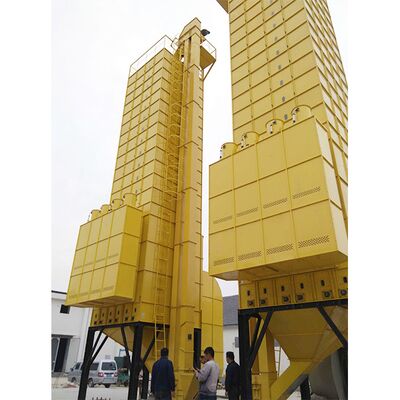

The PMD series grain dryer is low temperature type circulation batch type grain dryer. The dryer machine is mainly used to dry rice, wheat, corn, soybean etc. The dryer machine is applicable to various combustion furnaces and coal, oil, firewood, straw of crops and husks can all be used as heat source. The machine is automatically controlled by computer. The drying process is dynamically automatic. Besides, the grain drying machine is equipped with automatic temperature measuring device and moisture detecting device, which greatly increase the automation and ensure the quality of the dried cereals. In addition to drying the paddy, wheat, it can also dry rapeseeds, buckwheat, corn, soybean, cottonseed, sunflower seeds, sorghum, mung bean and other seeds, as well as some rule grains and crops with good fluidity and moderate volume.

2. Features

1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate;

2. The drying layer is combined by variable cross-section type angular boxes, mixed flow drying, high efficiency and uniform drying; Especially suitable for corn, parboiled rice and rapeseeds drying;

3. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter;

4. The dryer comes with fully automatic computer controlling system, easy on operation, high automation;

5. The drying-layers adopt assembling mode, its strength is higher than the welding drying-layers, more convenient for maintenance and installation;

6. All the contact surfaces with grains in the drying-layers are designed with inclination, which can effectively offset the transverse force of grains, help to prolong the service life of the drying-layers;

7. The drying-layers has larger ventilation area, the drying is more uniform, and the utilization rate of hot air is significantly improved;

8. Twice dust removal function during drying process, the grains after drying are cleaner;

9. Multiple safety device, low failure rate, convenient on cleaning and long service time.

Batch Type Paddy Dryer Machine with 15.3kw Power and Automatic Control for Low Temperature Drying 0

3. Technique Parameter

Model		PMD-60
Type		Batch type, Circulation, Low temperature, Mix-flow
Volume(t)		30.0(Based on paddy 560kg/m3)
		31.5(Based on maize 690kg/m3)
		31.5(Based on rapeseeds 690kg/m3)
Overall dimension(mm)(L×W×H)		7350×3721×14200
Structure weight(kg)		6450
Hot air source		Burner (diesel or natural gas); Hot air furnace (coal, husk, straw, biomass, etc.); Boiler (steam or thermal oil).
Blower motor(kw)		11.0
Total power of motors(kw)/ Voltage(v)		15.3/380
Time of feeding(min)	Paddy	54~64
	Maize	55~65
	Rapeseeds	60~70
Time of discharging(min)	Paddy	50~60
	Maize	51~61
	Rapeseeds	57~67
Moisture reduction rate	Paddy	0.4~1.0% per hour
	Maize	1.0~2.0% per hour
	Rapeseeds	0.4~1.2% per hour
Automatic control and safety device		Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

4. Why Choose Us?
1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.
2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads.
3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.
5.Presun Agro can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
Batch Type Paddy Dryer Machine with 15.3kw Power and Automatic Control for Low Temperature Drying 1
